Deluxe wheelchair and scooter carrier has all the premium features.
48.25" long x 28" wide usable surface
Extra long 27.5" wide x 60" long self storing loading ramp handles even the most dificult chairs/scooters.
Black powder coat finish.
500lb Weight Capacity.
Assembles with just a few bolts in less than 15 minutes.
Leveler bolt and anti-tilt collar included.
Heavy duty extra thick steel mesh surface
Includes a 1 year warranty.

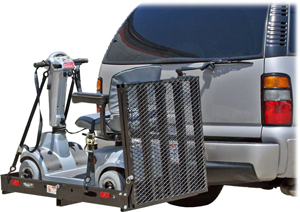

This mobility carrier has everything you need for loading and hauling your expensive mobility device.

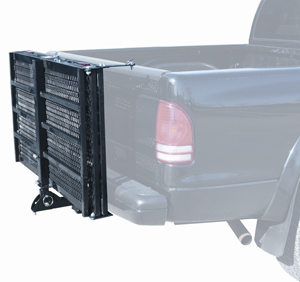

The wheelchair and scooter carrier features an integrated 2 section ramp which fold up and out into 3 different positions. The first position keeps the ramp folded flat to the carrier surface and held down with a spring pull pin. the folded flat position is to keep the ramp self stored and secured when the carrier is folded up. the second ramp position allows the ramp to stand up straight when a mobility device is on the carrier. The ramp is held vertically in place with a spring pull pin. the last position is the ramp unfolded. This position allows for scooters or power wheelchairs to be pushed or driven up the ramp.
A welded handle featured on the ramp allows for easy folding and unfolding. tie down straps can be hooked onto any of the 10 tie down holes featured on the 4 1/4" tall ramp sides. the ramp sides feature 5 carrying handles for easy handling when installing the device. The rear of the carrier has 2 reflectors for greater visibility at night.
Supporting the carrier is the heavy duty 2" hitch tube which features 4 bolts and a safety pin underneath to allow the hitch tube to be removed fromt he carrier. The hitch tube has a 5/8" hitch pin hole for securing the carrier to your vehicle and will work on class III or IV hitches. This carrier is not recommended for 1 1/4" hitches.
Please Note: Mobility devices are not to be occupied when loading, unloading, or on the carrier! Never exceed the rated capacities of your hitch.
Weight Capacity: 500 lbs.
Usable Dimensions: 48.25 x 28
Weight: 84 lbs
Maximum chair width: 27 inches
